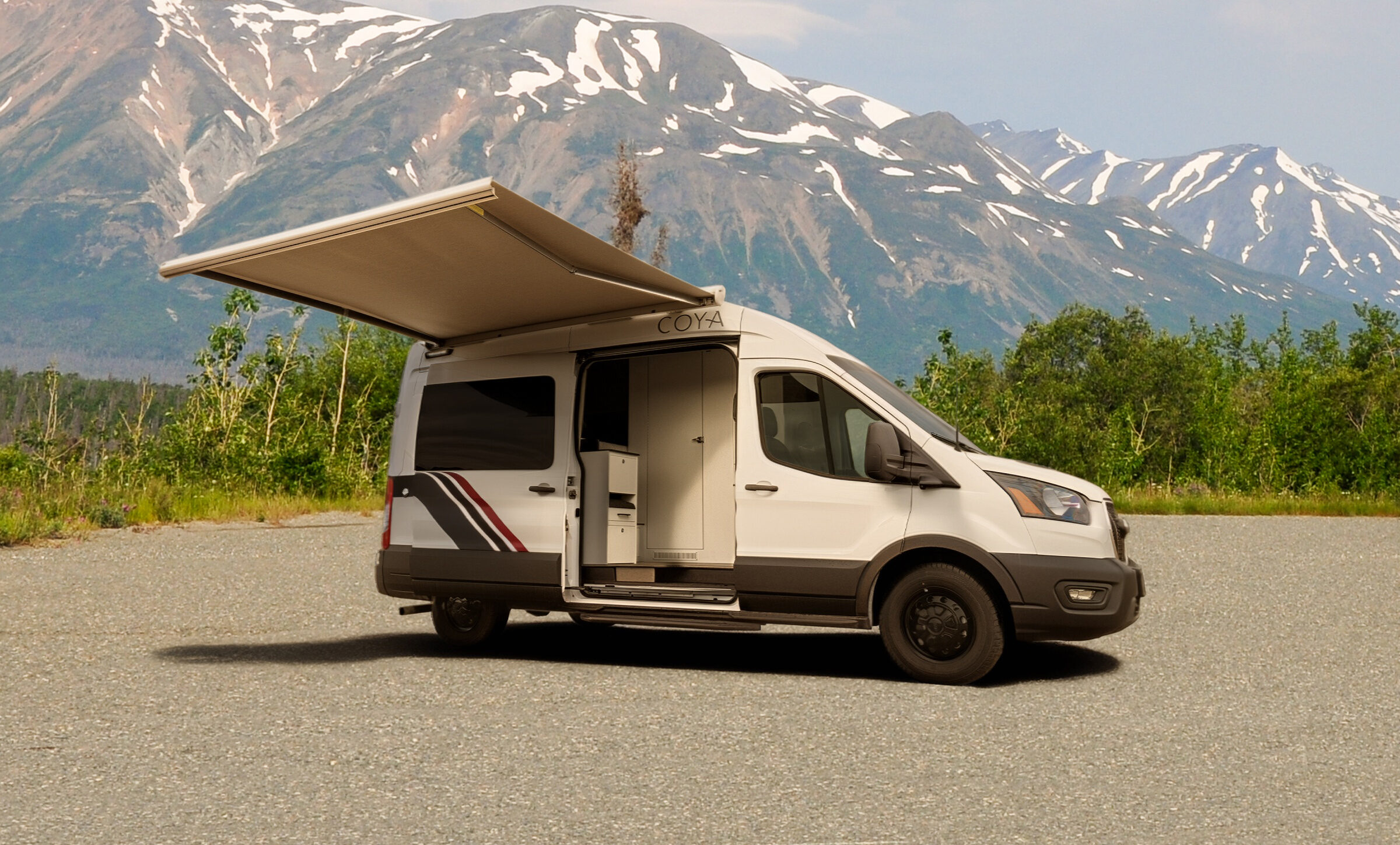

WALDOCH COYA CAMPER

COYA = Adventure Ready

Ready to go on an adventure with your COYA van.

With a full size shower, kitchen, solar power, you can boon dock in luxury. If you’re stopping at a camp site, plug in your COYA to shore power and charge everything up.

The COYA is built to pack all the features you can imagine and then some!

Are you ready to build your COYA TODAY?

FULL PACKAGE FEATURES

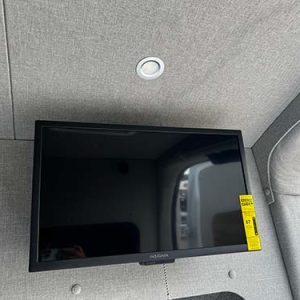

Swing Out Smart TV
Full Shower & Toilet

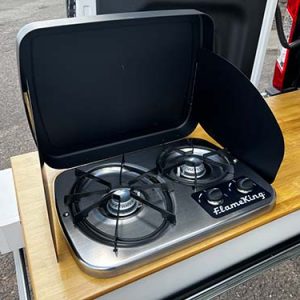

Outdoor Grill & Prep Area
Additional Head Room
Shore Power For Camp Sites
Previous slide
Next slide

STANDARD FEATURES

INTERIOR

  • High-end Formica laminate plywood Solid surface in shower
  • Sound deadening (70% coverage)
  • EZ cool barrier
  • Wool batt insulation
  • Wall, ceiling, and door panels: Luan plywood covered in closed foam and then wrapped with marine grade fabric or vinyl
  • Floor: 3-part floor system One-closed cell foam insulation, Two-3/4” plywood
  • Three-Marine grade decking or industrial grade floor added

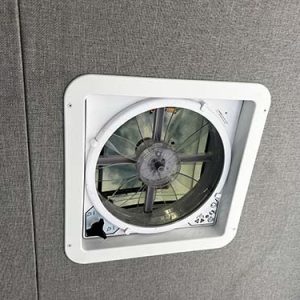

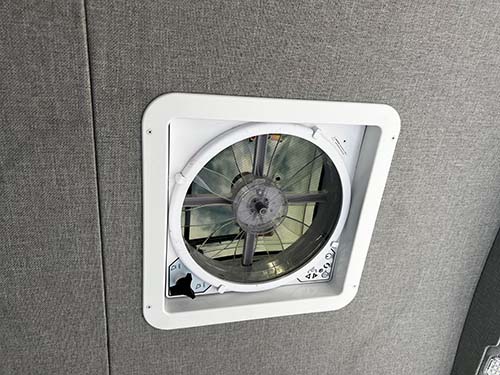

  • Maxxair fan: Maxxair model 7500K 10 Speed electric fan

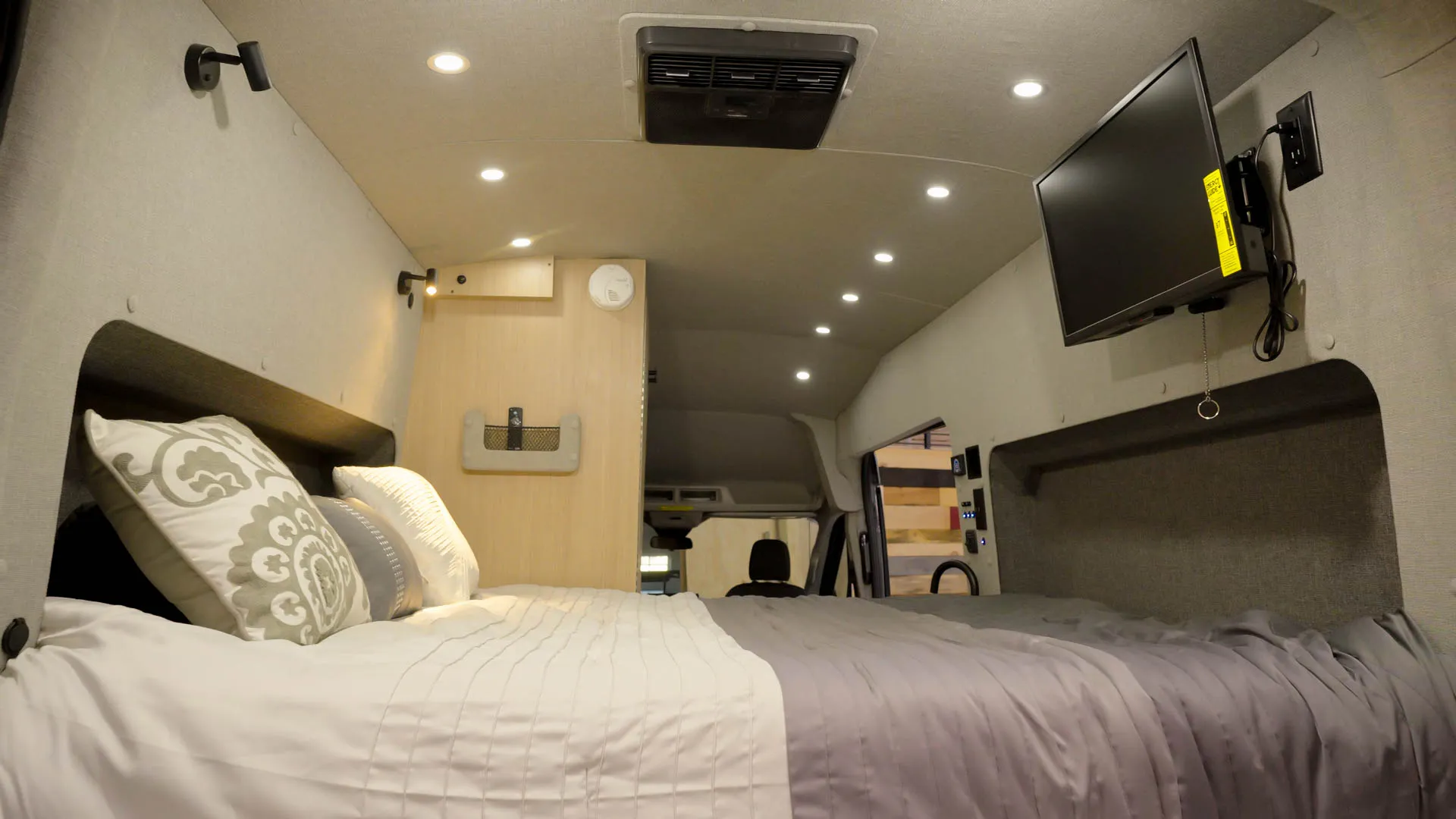

  • 12 overhead LED lights on dimmer: Frosted glass 3” LED lights recesses into ceiling
  • Step Light – fully lighted step

CABINETS & SURFACES

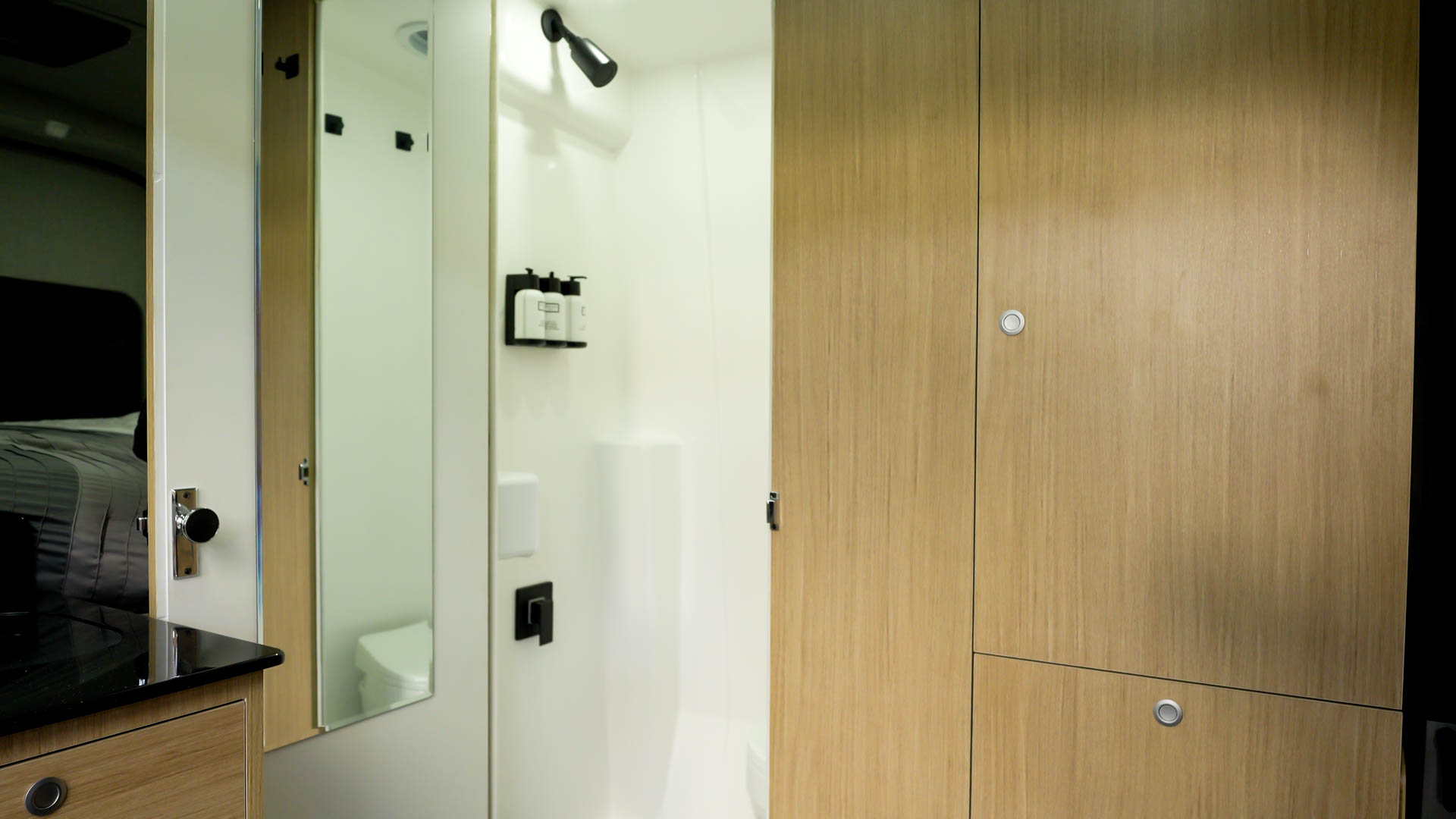

  • Driver side large wet bath with shower

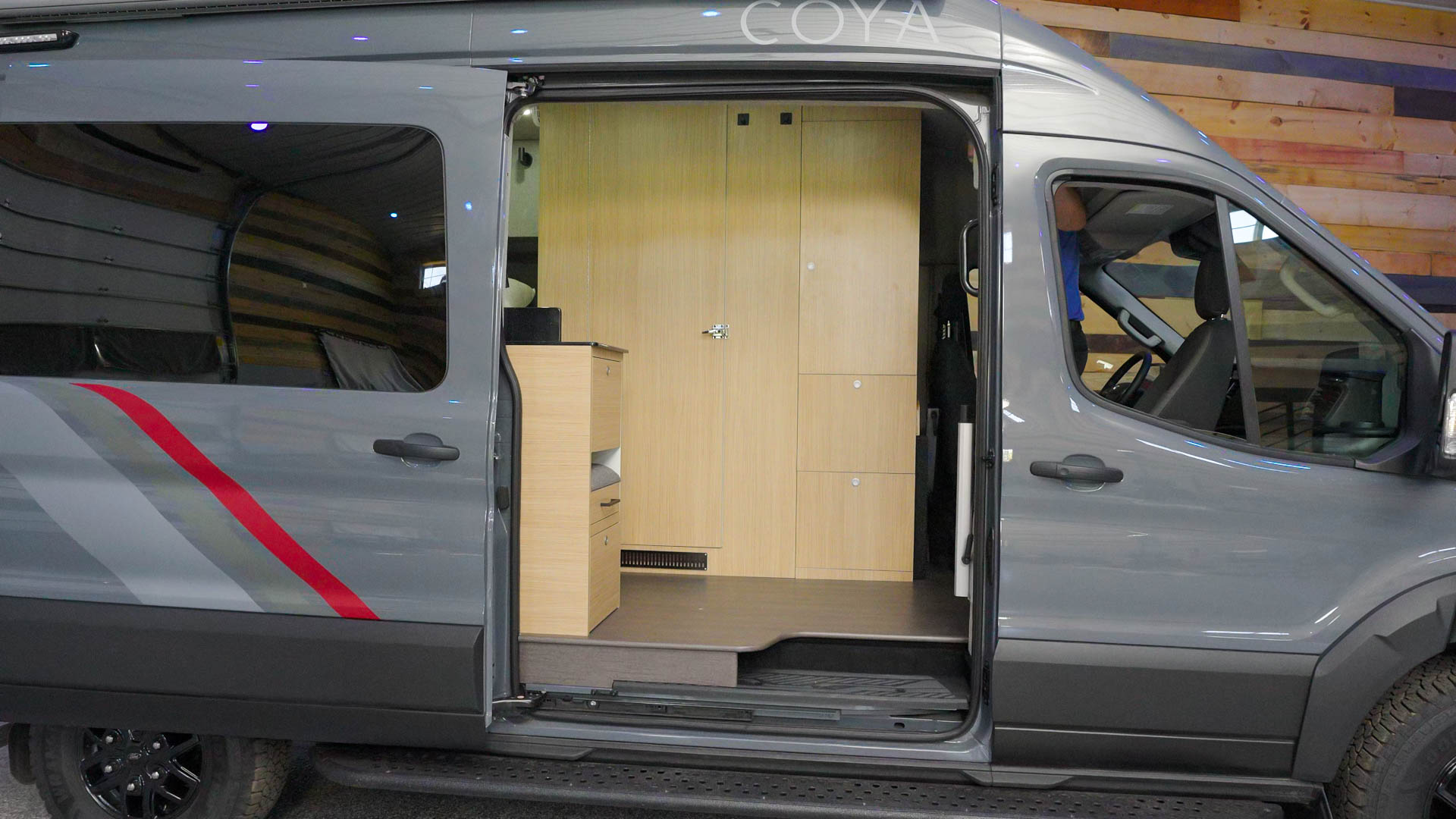

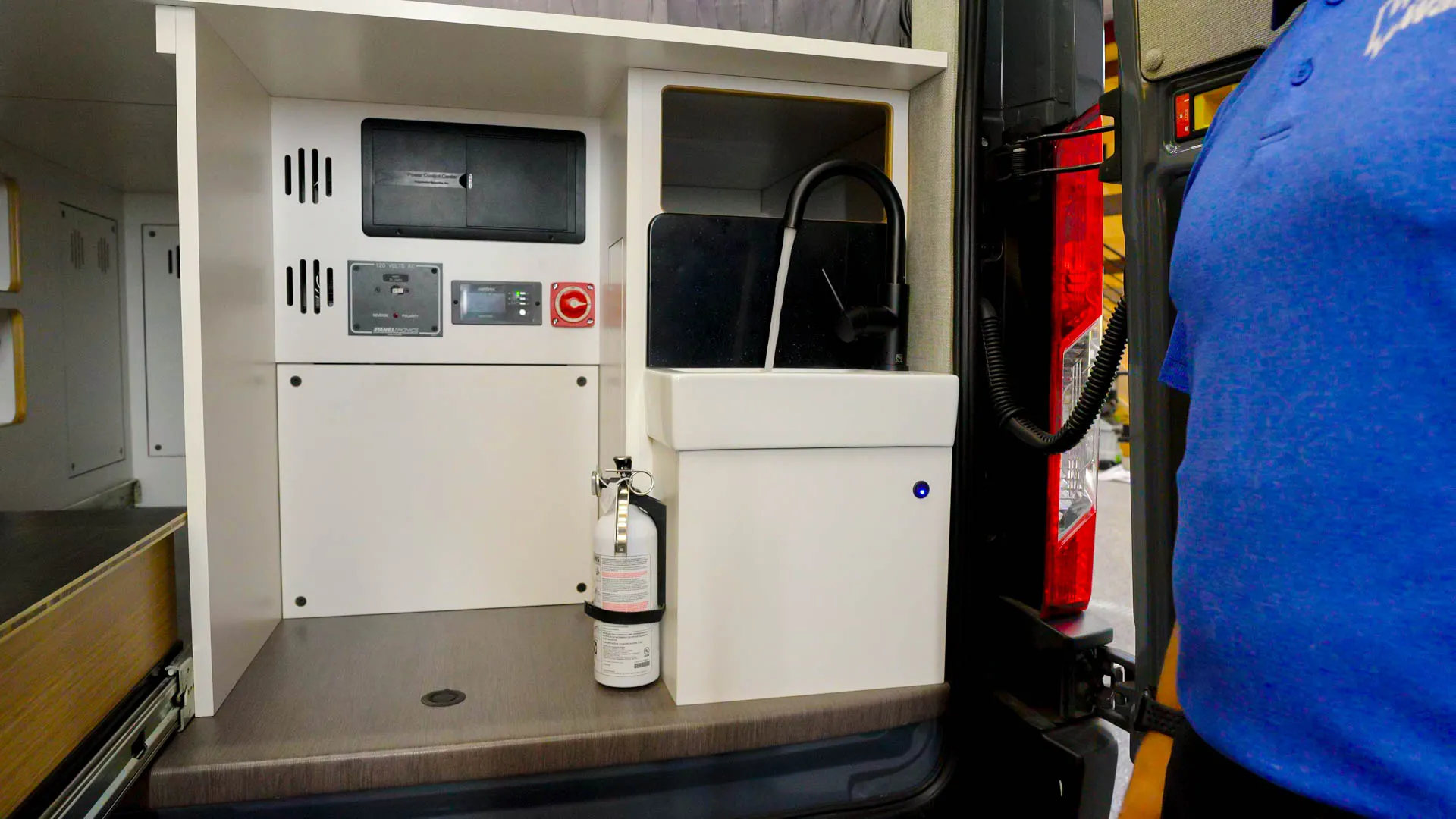

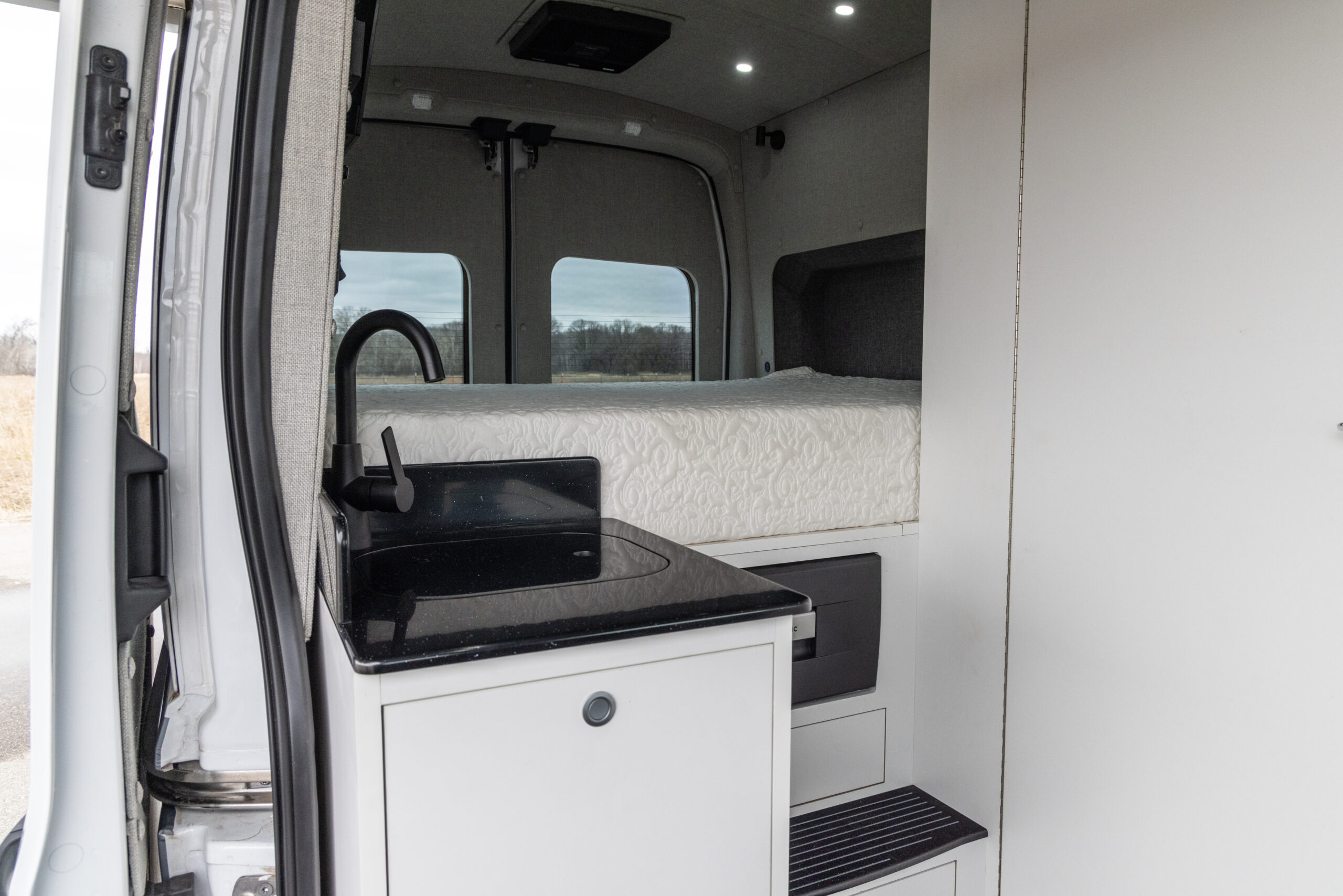

  • Passenger side small galley cabinet with sink and slide out bench
  • Bedroom wall with two drawers, step, and drawer fridge
  • Large coat closet with two slide out shelves for luggage storage
  • Solid surface countertop on galley cabinet (6 sq. ft)

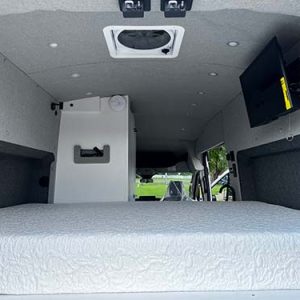

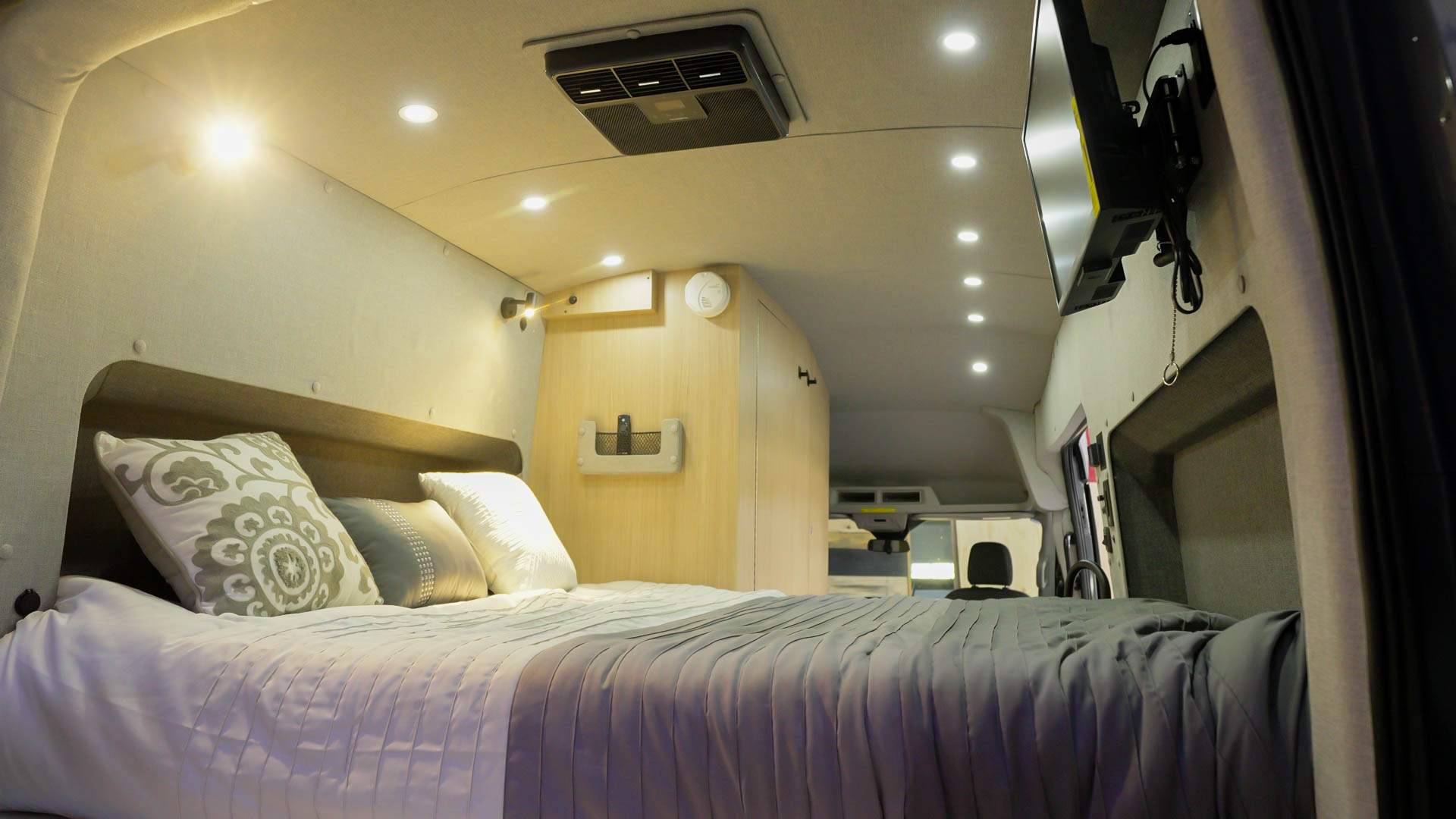

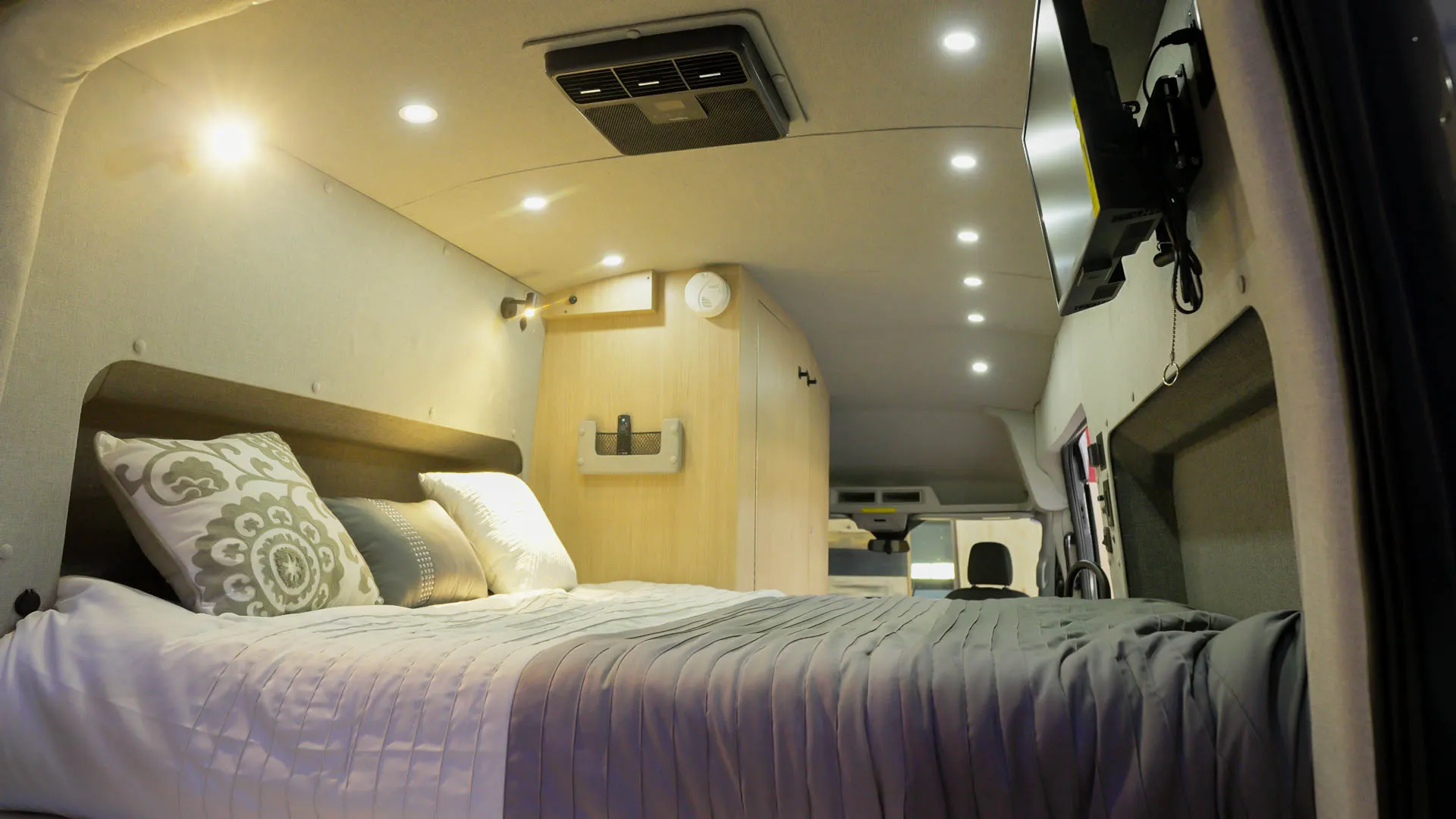

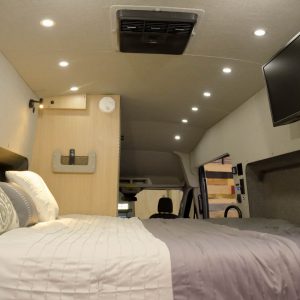

  • Platform bed 67”x 75”

CAMPER ACCESSORIES

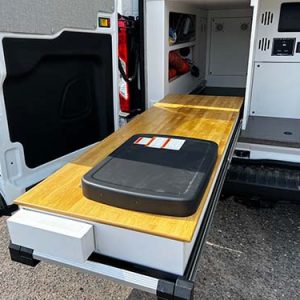

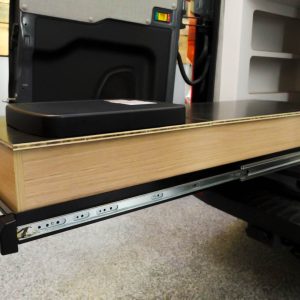

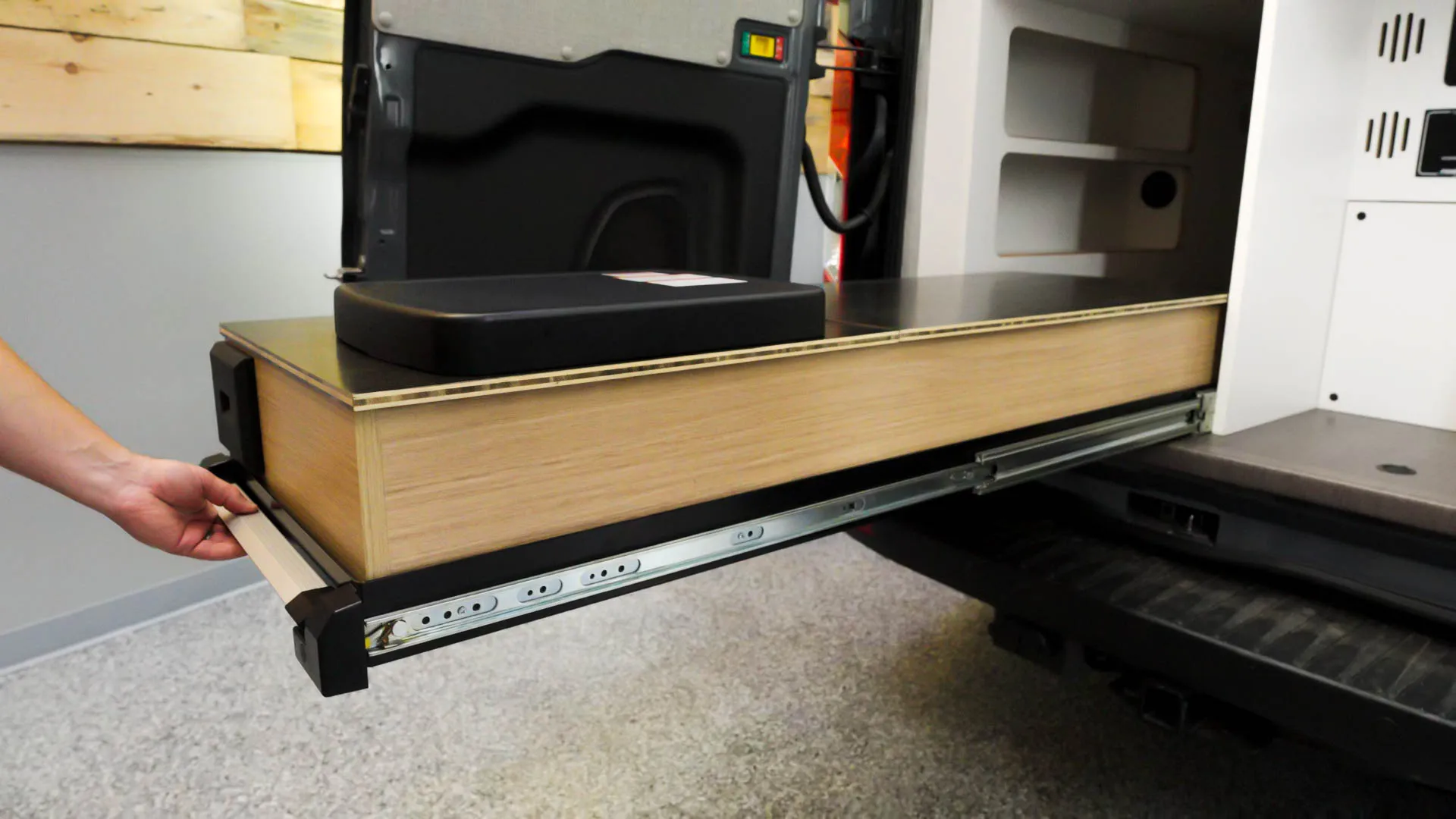

  • Trunk Side Out Tray with Heavy Duty Lock Out Glides
  • Trailer Hitch (Bike Mount & Accessories)
  • Fire Extinguisher and Smoke Detector/Carbon Monoxide Detector
  • Rip Stop Insulated Curtains for Cabin Windows and Curtain System for Front Window, Driver and Passenger Windows
  • Swivel Table System with One Mount
  • Solid Surface Mat Custom Cut to Size
  • Mattress 74×60 8″ Graphite infused

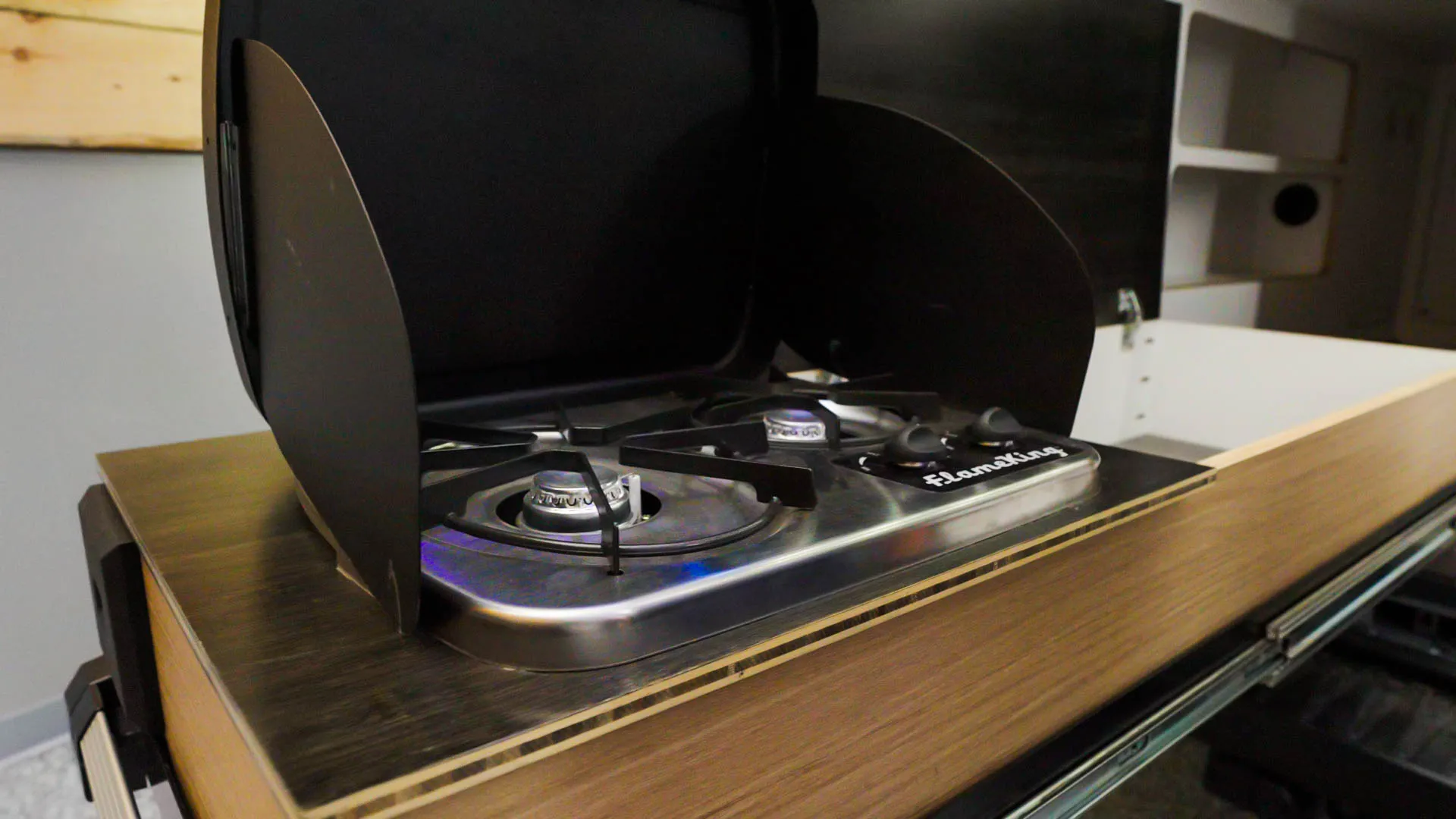

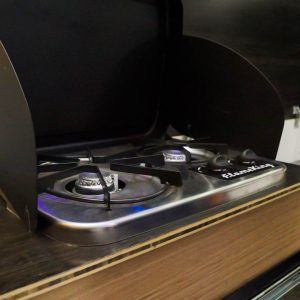

  • Rear Kitchen Set up with cooktop Bamboo top, White Sides

ELECTRICAL

  • 412Ah lithium electrical setup
  • 2 -SOK 206 AMP Lithum Batteries
  • Red Arc 40-amp DC-DC Charger BMS
  • Low Voltage Shutoff
  • 2 – 160-Watt Solar Panels
  • Xantrex Freedom XC 2000-Watt Inverter/Charger

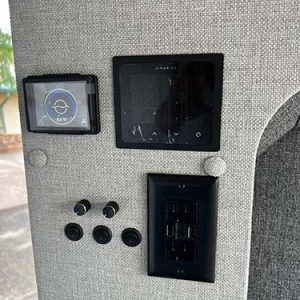

  • Circuit Breaker Panel with Customer Access
  • 3-USB Ports and 1-12 Volt Port
  • 3-Outlets with GFCI

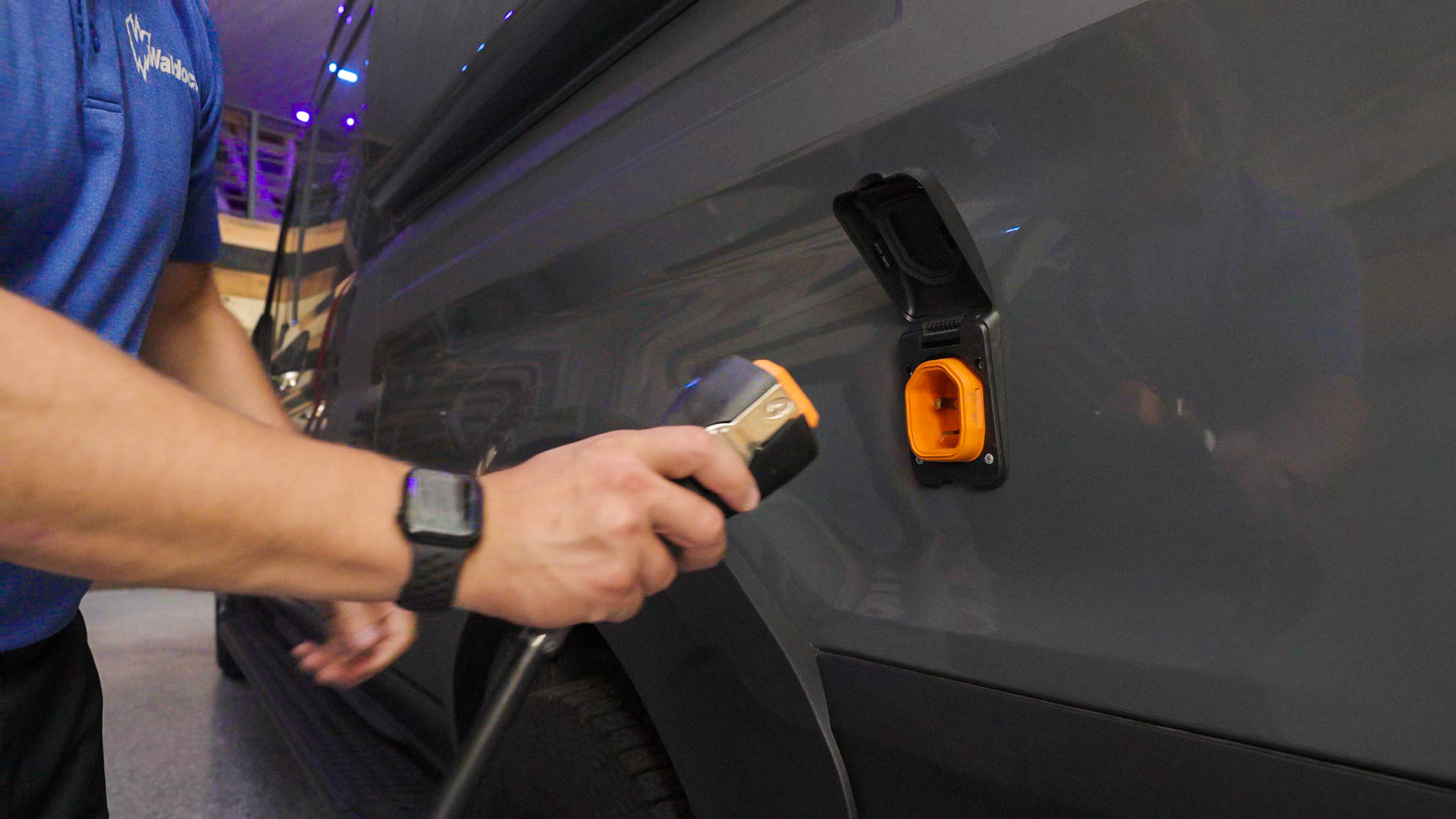

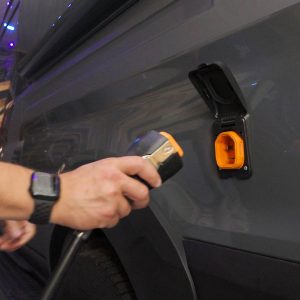

  • Shore Power Connection with Cord
  • Ethernet cable installed in electrical box and wired to Jack behind TV
  • Ellwel Heat and Hot Water System

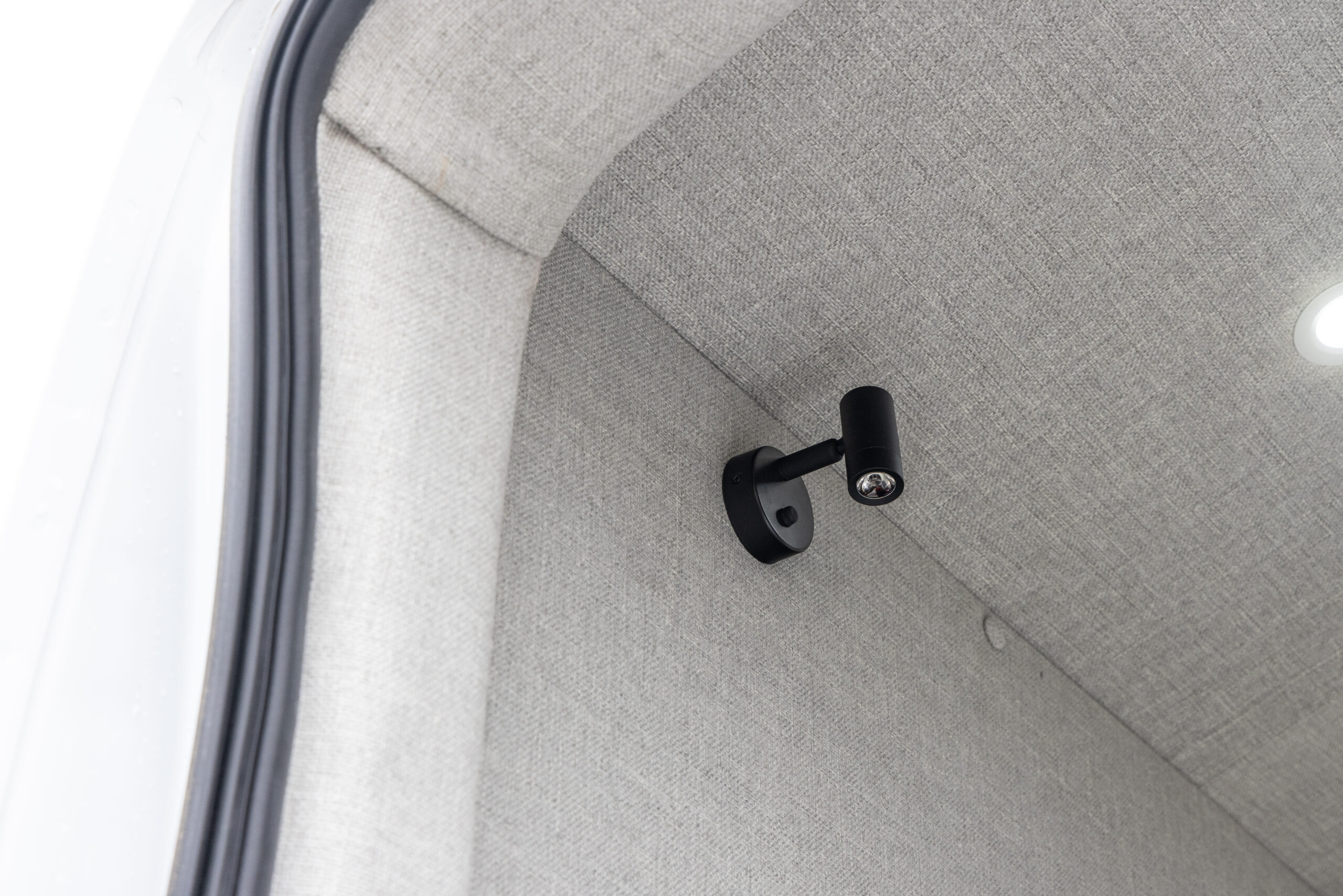

  • 2-Down Lights Added to Bed Area

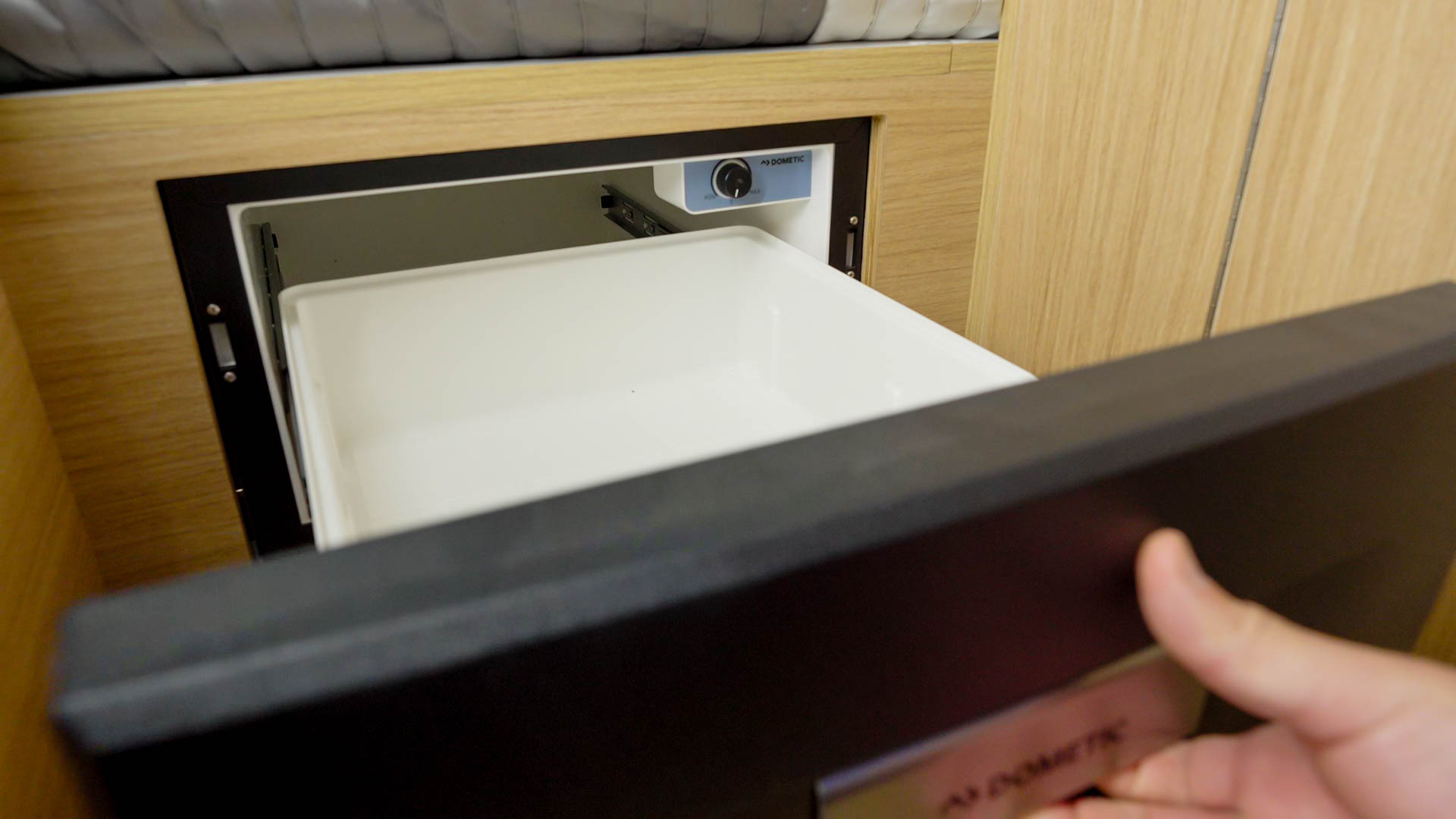

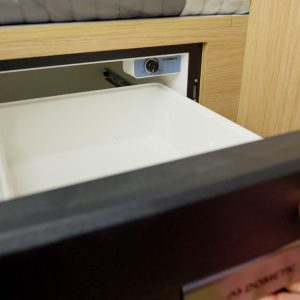

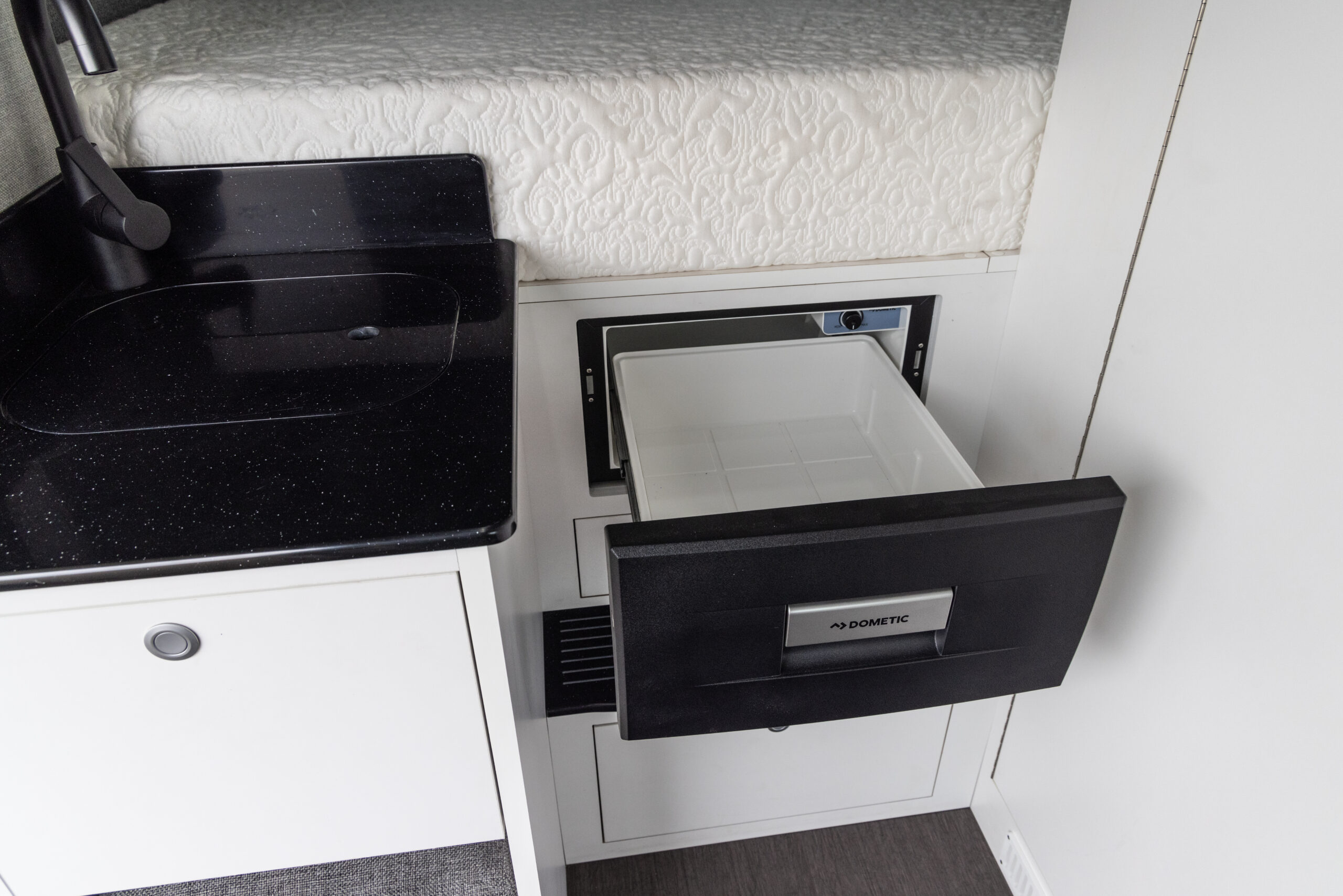

  • Dometic CD30 Refrigerator

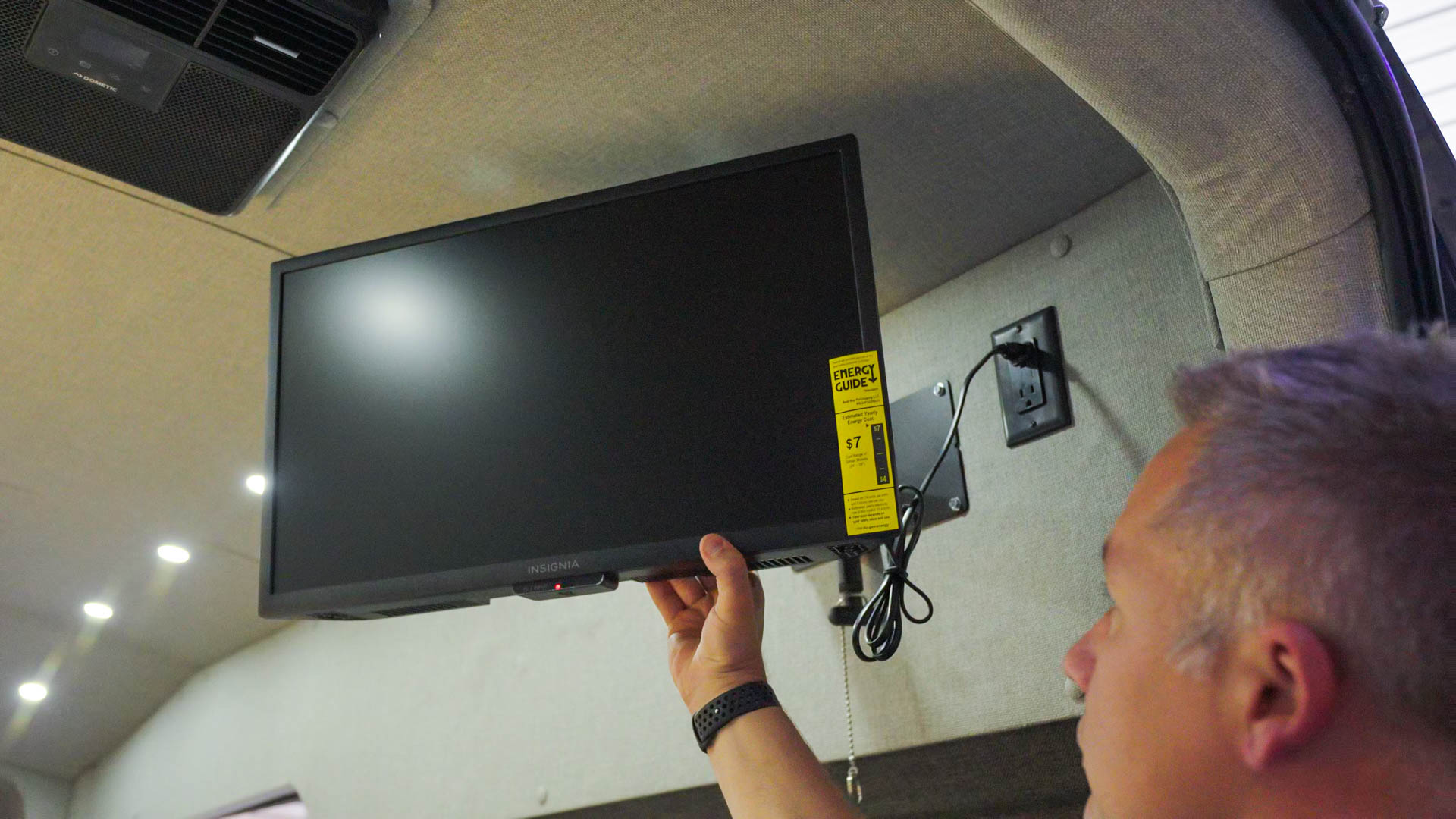

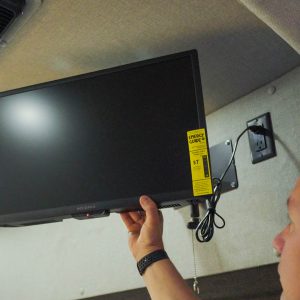

  • Insignia 24” TV with Swivel Mount
  • 2 outside Security Lights

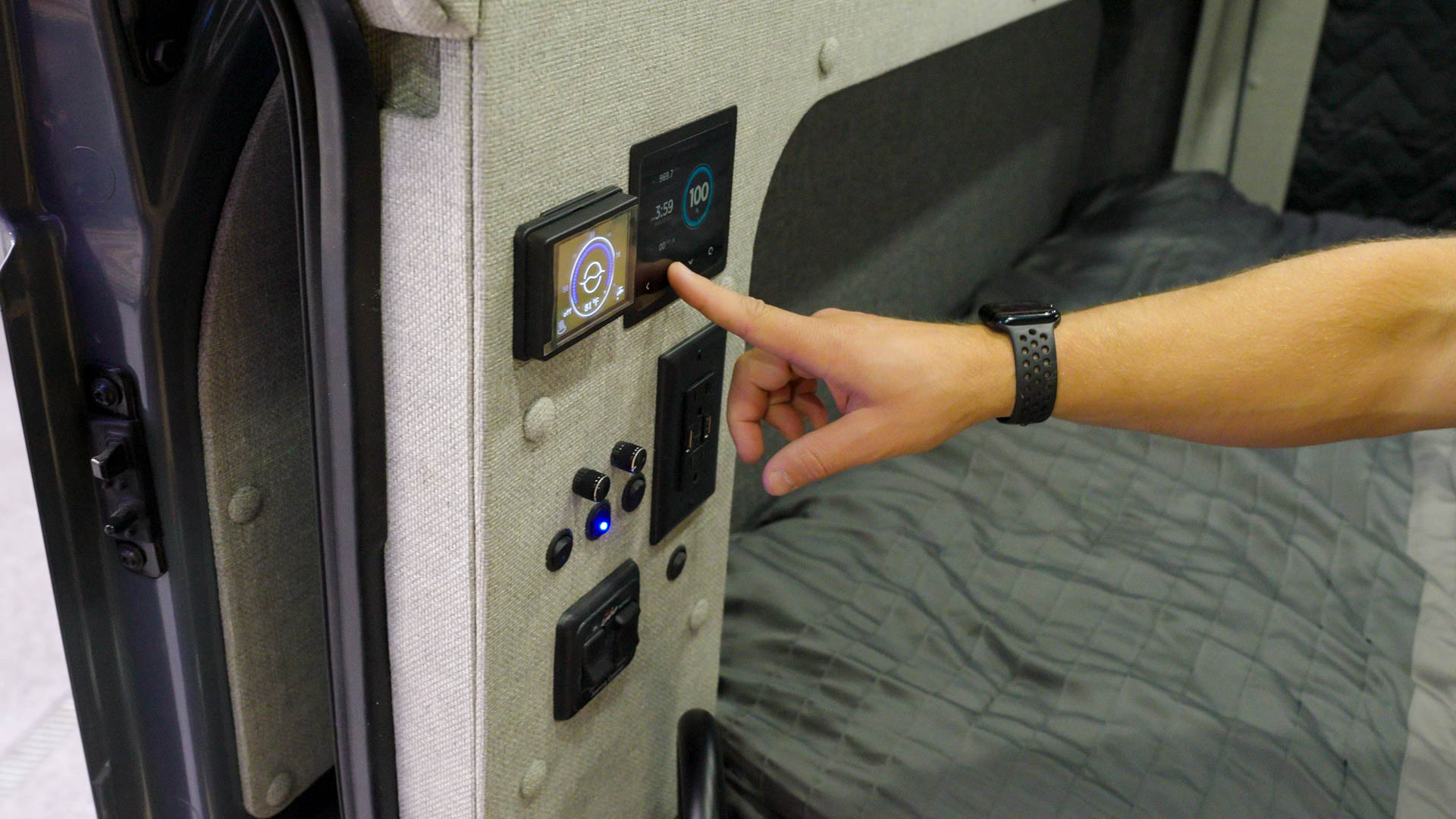

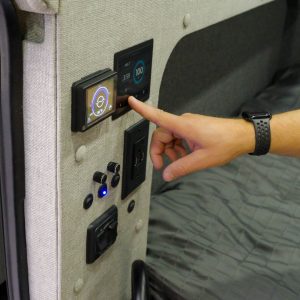

  • Pico Monitoring System

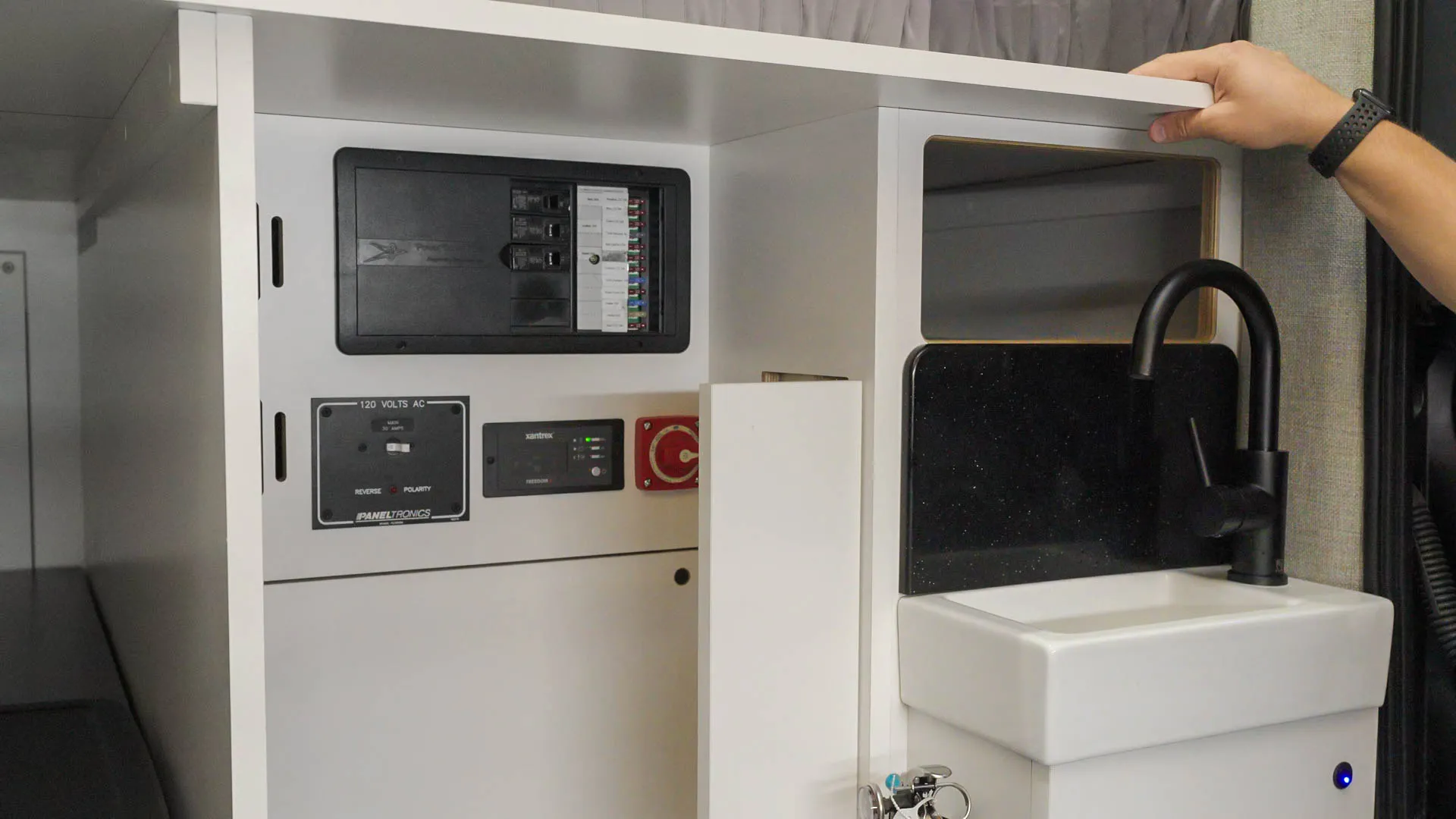

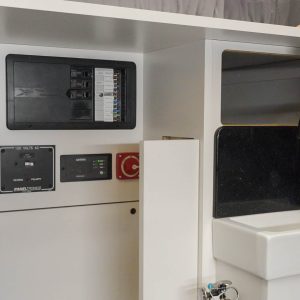

  • Progressive AC/DC Panel

BATHROOM

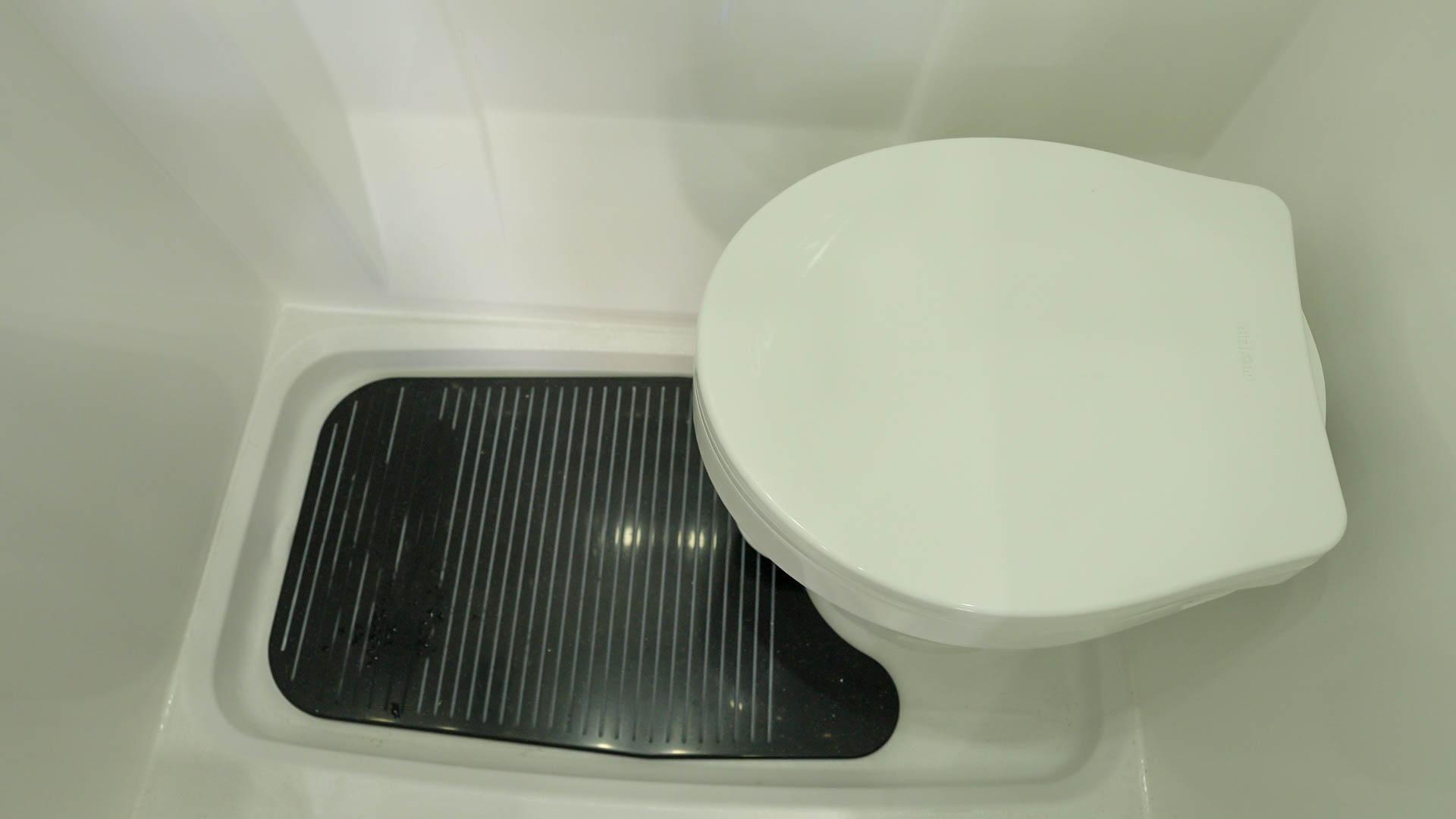

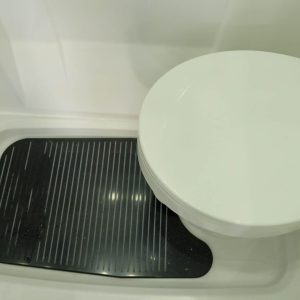

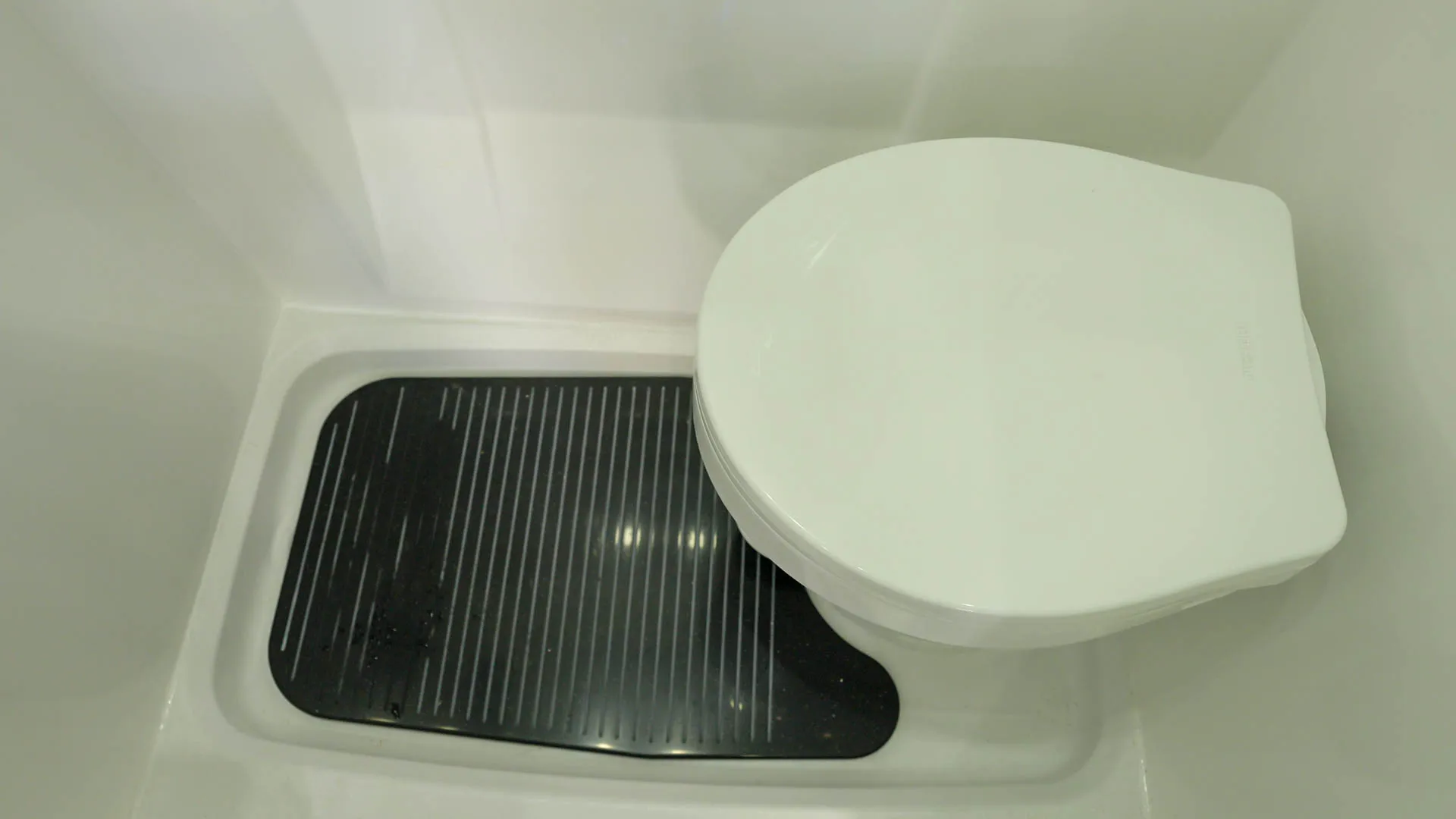

  • Thetford Magic 5 High with Handle
  • Bathroom Mirror 53.13’X13.77″ mounted on Door
  • Toilet Paper Holder – Corneria
  • Eco Eclipse Amenity Dispenser System Beek 3
  • 4 Hooks inside and outside of bathroom

PLUMBING

  • 43 Gallon Fresh Water Tank

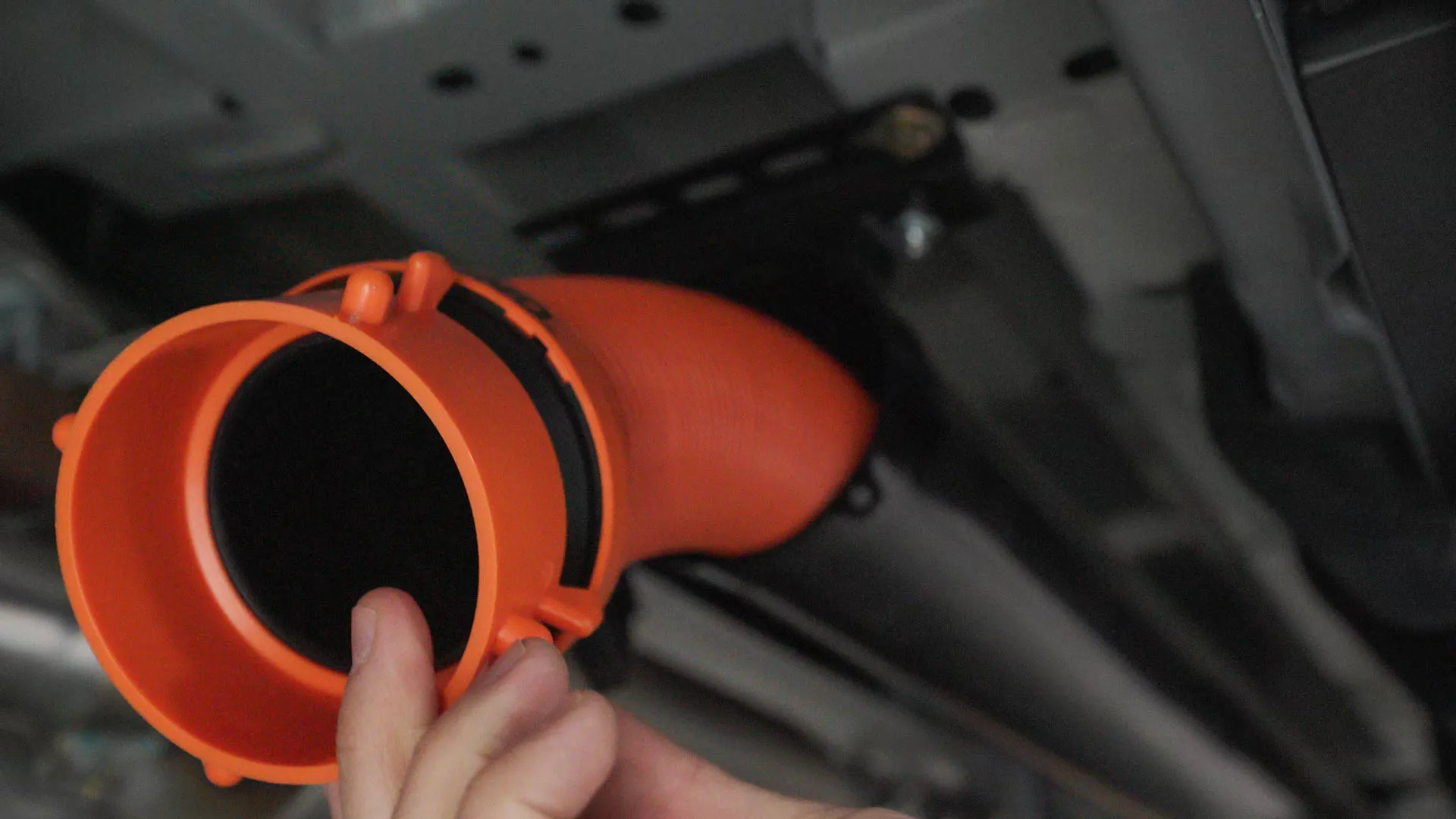

  • 48 Gallon Black Water Tank
  • Series Insulated Connection
  • Sink and Faucet Combo or Under Mount
  • Rear Spray Port for Back Shower or Gear Cleaning
  • Shower in Front Head with Control

WARRANTY

  • 3 Year / 36,000 Mile Warranty

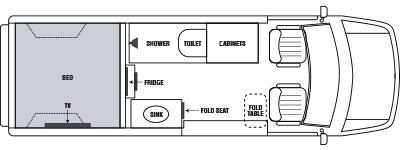

LAYOUT OPTIONS

148″ HIGHROOF

OPTIONAL FEATURES

INTERIOR

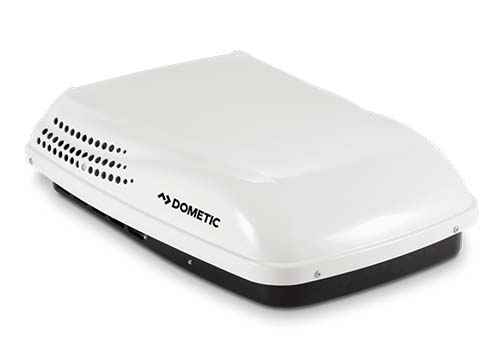

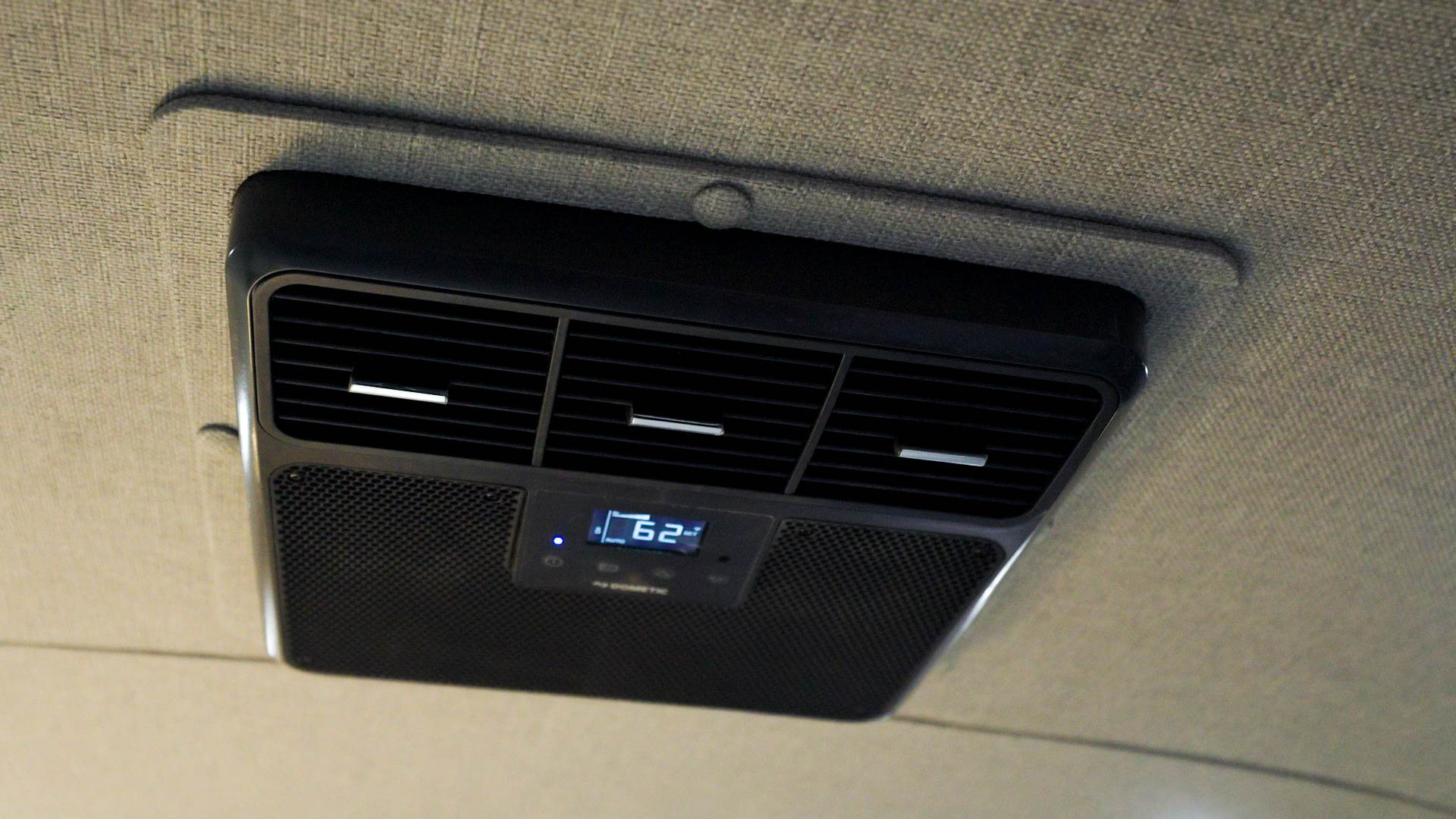

12Volt Dometic AC system

Wi-Fi Antenna Omni-Directional – KING – (2GB starts at 19.00/mo.)

Waldoch Wi-Fi System KING

Cell Phone Booster KING Extend Pro – LTE/Cell Signal Booster

(No Monthly Cost)

Vehicle Cell Phone Booster Waldoch

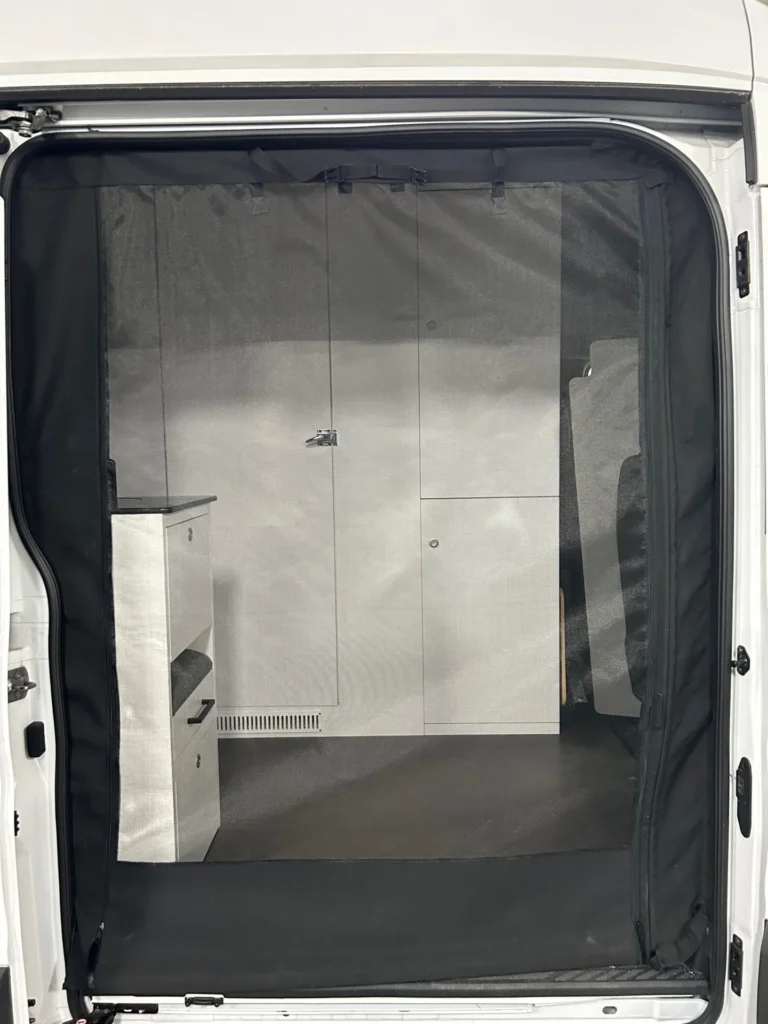

Passenger Sliding Door Bug Screen with Walk through Magnetic Door – Can roll up

Ford Transit Sliding Door Screen - Waldoch

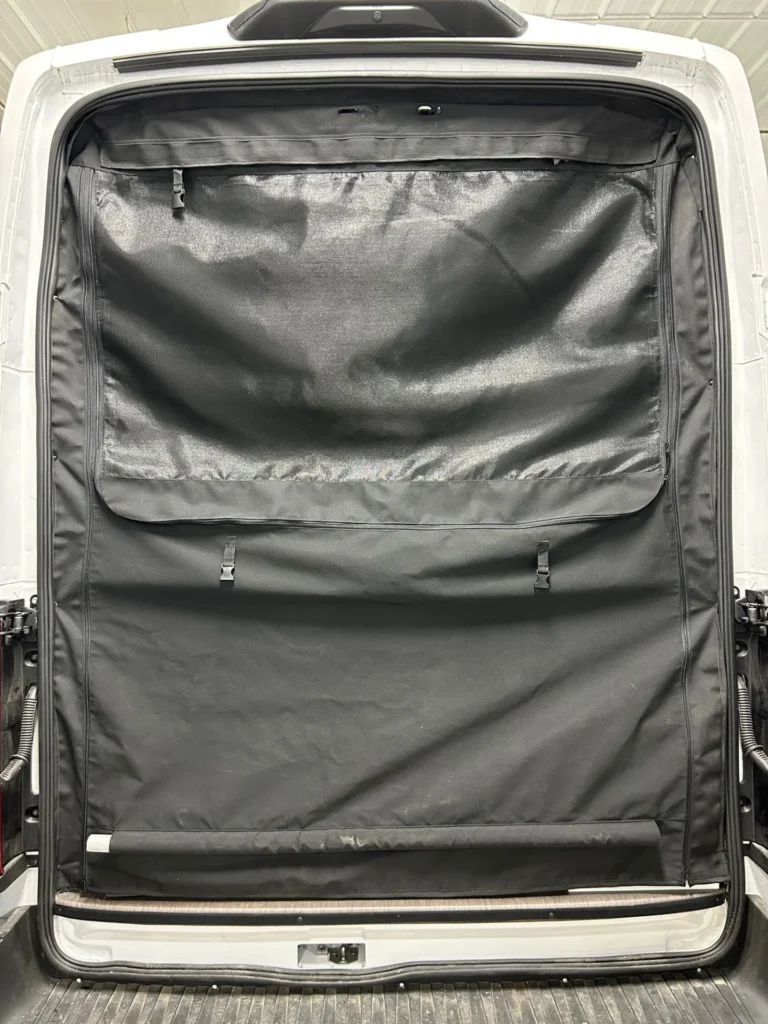

Rear Door Screen Door – Black out and screen rolls up

Ford Transit Back screen door - Waldoch

EXTERIOR

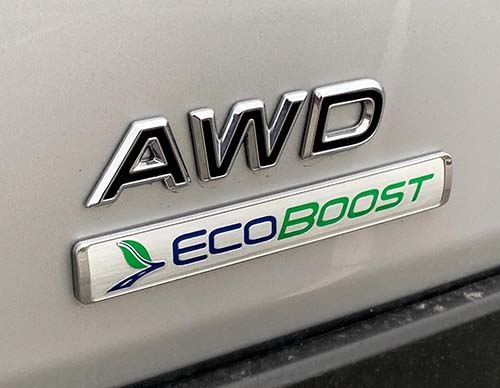

R2X AWD Chassis Upgrade Option

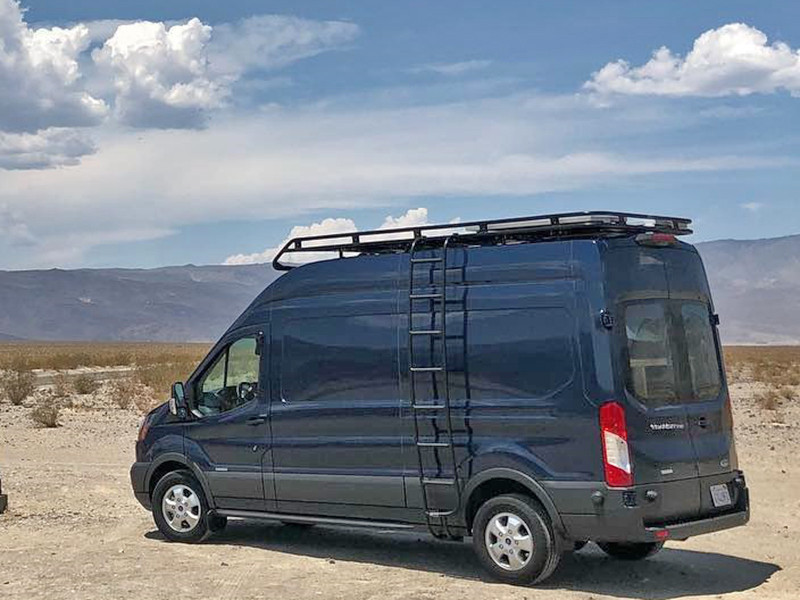

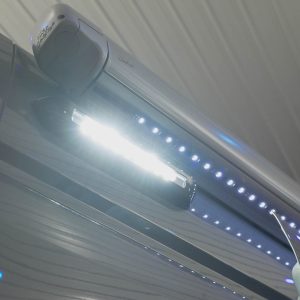

Custom Roof Rack with Ladder and LED front Light

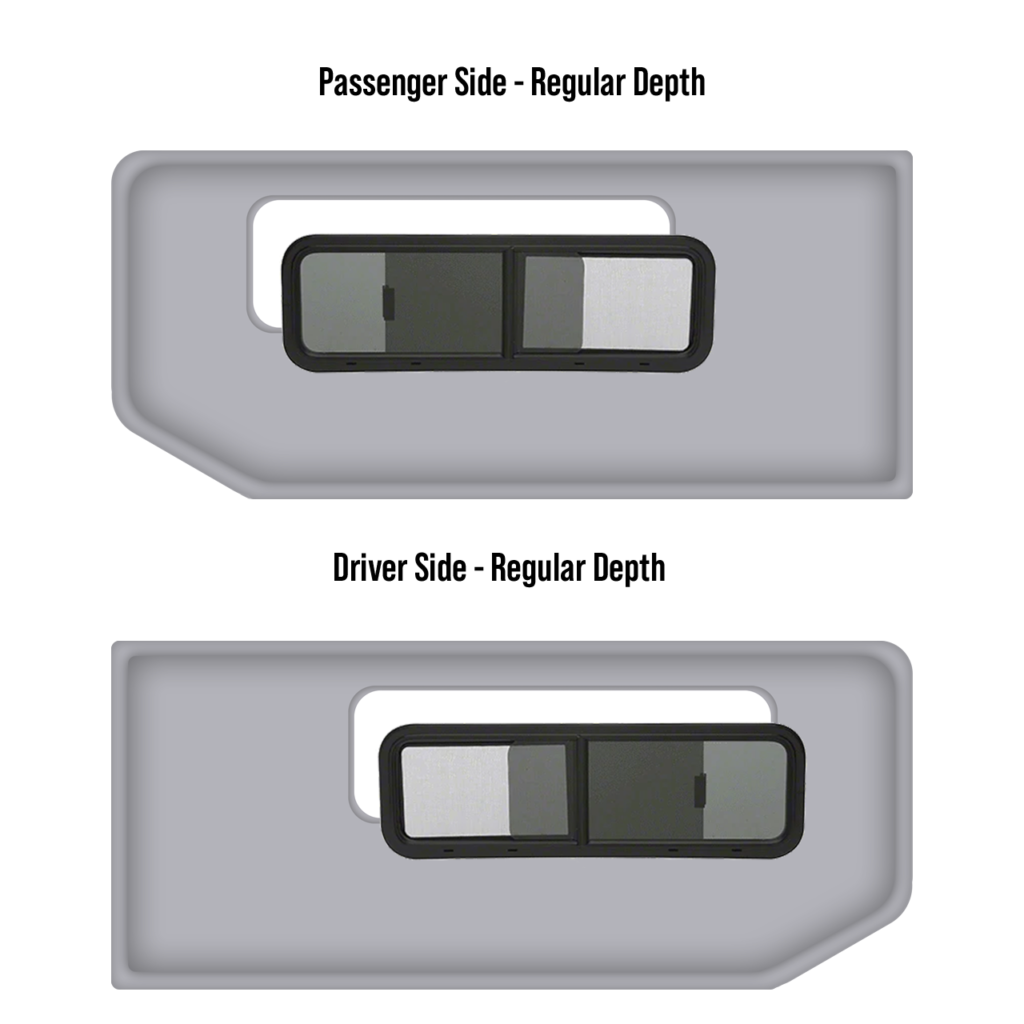

Driver and Passenger Vented Slider Windows on Bump outs

Tint Front Two Windows
Tint All Rear Windows

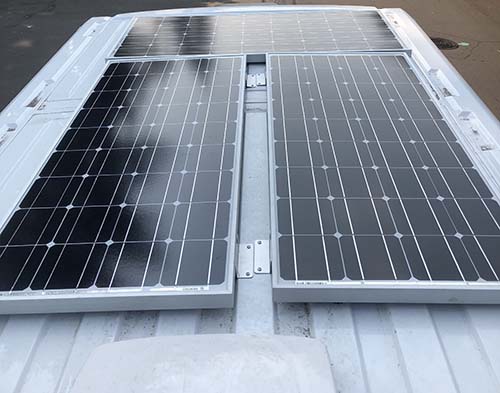

Solar Power System Installed on Roof

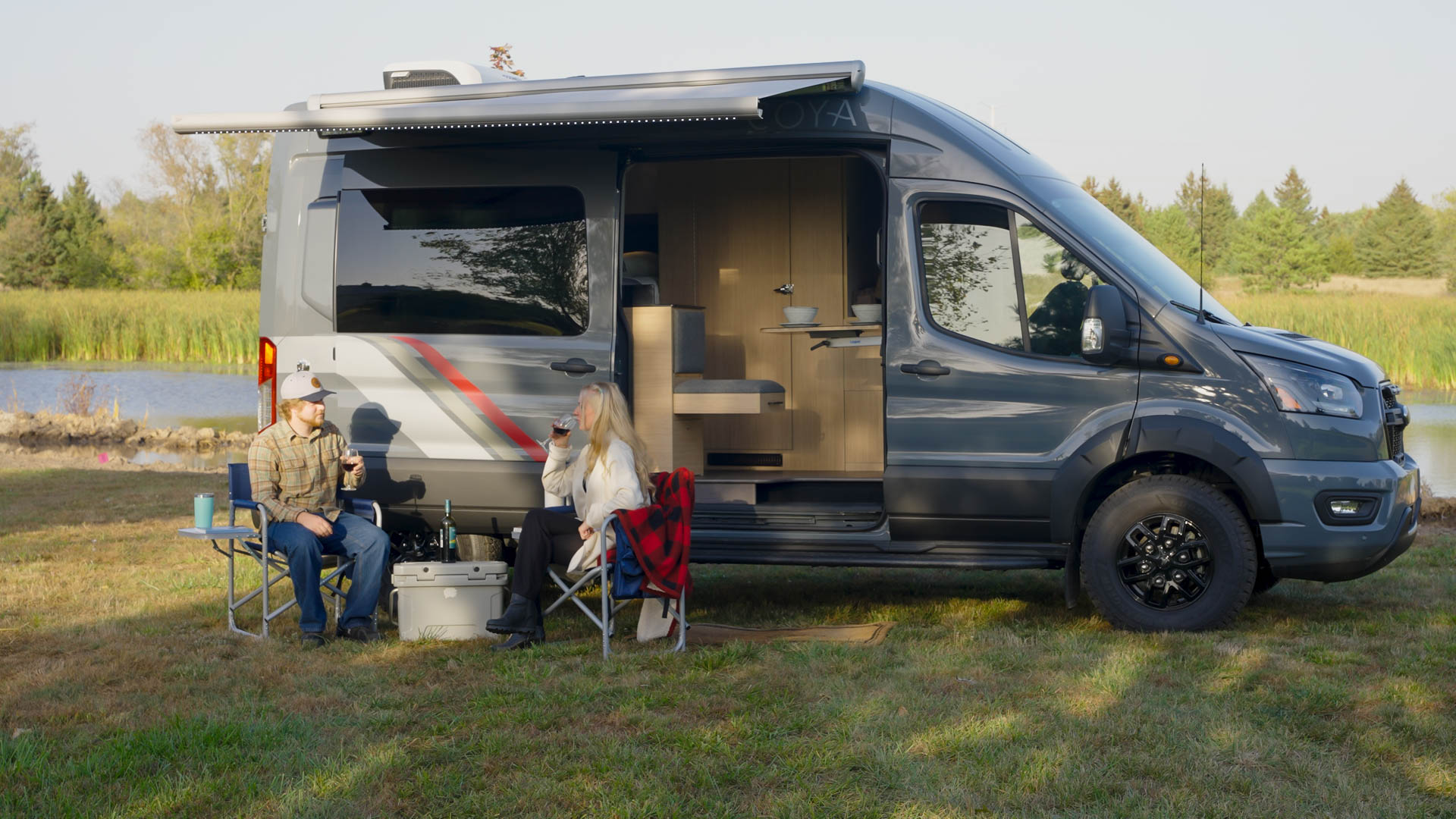

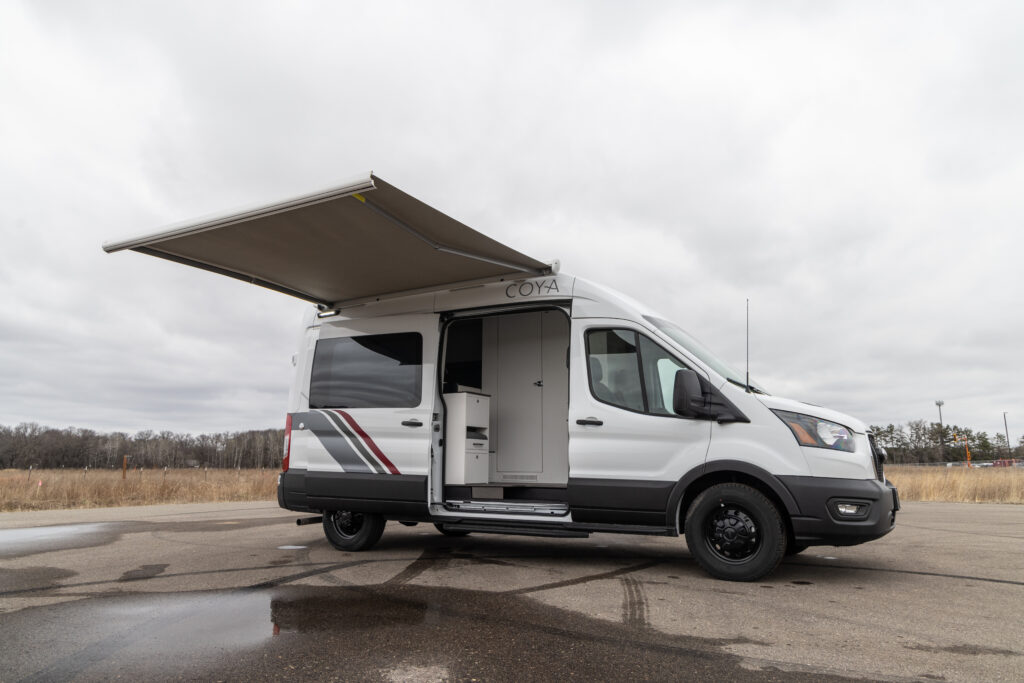

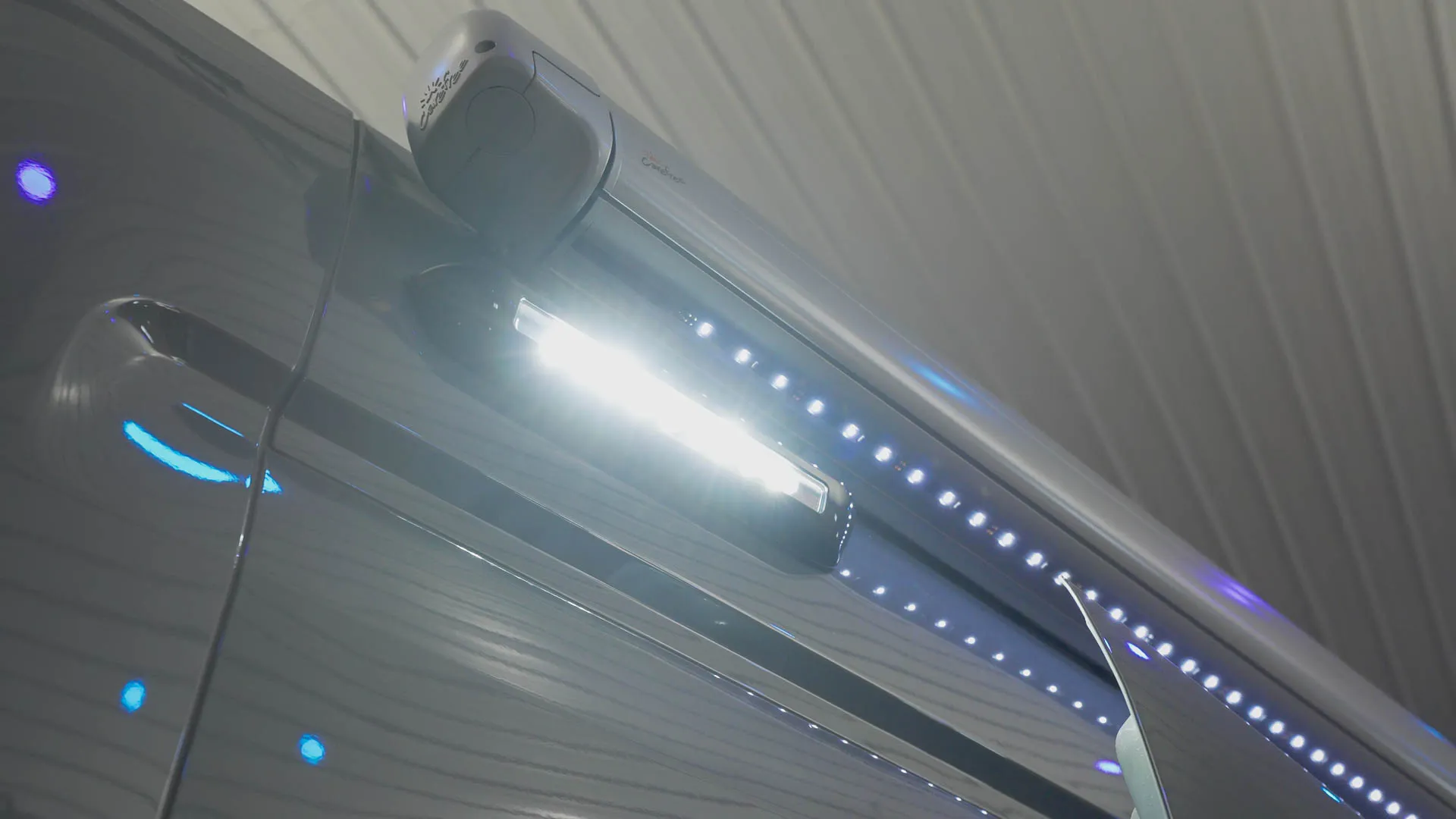

Power Awning – Power with Switch – Wind Sensors

Power Awning Ford Transit

WHEELS

16″ Custom Wheels on Factory Tires

17″ Custom Wheels on Goodyear Tires

DIMENSIONS

TRANSIT 148 WHEELBASE HIGH ROOF

TRANSIT 148 EXT WHEELBASE HIGH ROOF

GALLERY

WARRANTY

All work done by Waldoch is under a 3 year/36,000 mile Warranty.

SERVICE

Get your Waldoch vehicle serviced at any dealership or shop nationwide

COMPLIANT

Waldoch upfits are compliant with Federal Motor Vehicle Safety Standards, QVM, MVP with NTEA and SEMA Members

FINANCING

The entire package can be financed with the purchase of the vehicle. One simple and easy payment.

BUILT

Waldoch proudly upfits vehicles in the USA.

RVIA CERTIFIED

Our campers are RVIA certified. This means you’re buying a Recreational Vehicle Industry Association (RVIA) certified vehicle, which indicates our campers meet over 500 safety requirements. This includes construction, electrical, plumbing, heating, and fire safety.
